Lumo pendant

Finish
Painted die-cast aluminum in black RAL 9005, orange RAL 3022, grey RAL 7047, green RAL 6011, browngrey RAL 7006. Raw aluminum model is untreated = deffects and spots are visable and change over time.Diffuser in matt acrylic. Can be ordered with diffuser in microprisma.Other colours on request. Joint ceiling cup for up to 6 pendants can be ordered seperately.

Led info
System power: 10W. Luminaire Luminous Flux: 830LM. CCT 3000K. SDCM 3. CRI 90. L70/55000H.
Alternative including dimmable GU10 LED lightsource 4,9W or 6,2W.

Installation
Suspended from ceiling 2,5 m cable. Including cable-cup.

Connection
Terminalblock 3x4 mm2. When DALI 5x4mm2.

Design
Thomas Bernstrand 2022.

Product specification

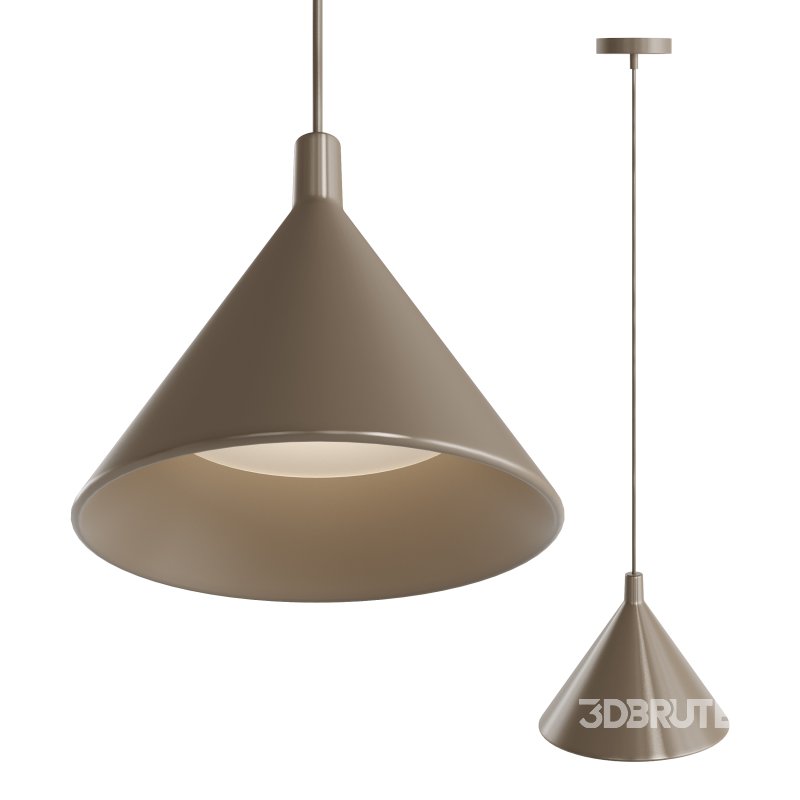

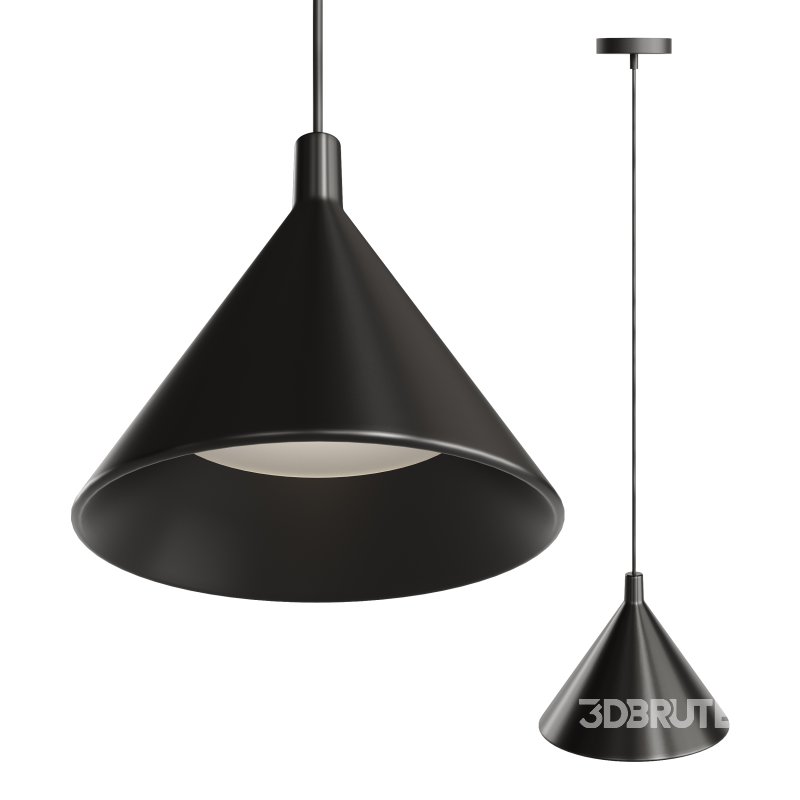

Lumo is a classical, cone-shaped pendant, cast from a single piece of aluminium. The six-millimetre thick shade ends elegantly with a nice full radius. The diffuser is imperceptibly mounted into the shade in a way that avoids glare. Lumo can be built together with various railing fixtures to form straight, round, triangular or quadrilateral formations, suspended cleverly with the fixture’s cables.
